Sample

It is used to make hardcovers, notebook covers, desk calendars, hanging calendars, book-type boxes, files and rregular covers etc.

Tags: Corrugated Cardboard Slitter Scorer Corrugated paper slitting machine High Quality cardboard cutting machine cardboard slitting machine

Benefits Technical Parameters System Features

Downloads

Benefits

1. Feeding large size cardboard by hand and small size cardboard automatically. Servo controlled and setup via touch screen.

2. Pneumatic cylinders control the pressure, easy adjustment of cardboard thickness.

3. The safety cover is designed according to European CE standard.

4. Adopt the concentrated lubrication system, easy to maintain.

5. Main structure is made of casting iron, stable without bending.

6. The crusher cuts the waste into small pieces and discharges them with conveyor belt ;

7.This machine has servo-driven paper feeding mechanism, automatic knife adjusting device and other patents.

8. Touch screen man-machine interface, cutting paper size, processing quantity can be preset.

Technical Parameters

型号	Model	KL1300AS
纸板宽度	Board Width	550mm W1<100-600mm, W2<55-600mm
纸板厚度	Cardboard Thickness[T]	1-3mm
裁切速度(开大板)	Cutting Speed (Open Plate)	≤25张/min
裁切速度(开小板)	Cutting Speed (Opening Small Plate)	≤120张/min
电机功率	Motor Power	1.5kw/380v 3phase
总功率	Total Power	8kw/380v 3phase
气源要求	Air Supply	0.2L /min 0.6Mpa
机器重量	Machine Weight	2800kg
机器尺寸	Machine Dimension	L5780xW2930xH1360mm

System Features

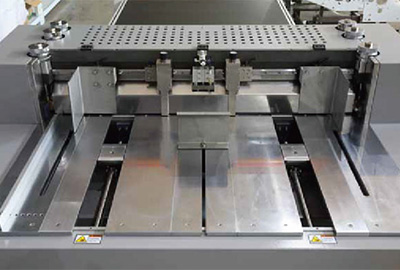

Auto Board Feeder

It adopts bottom drawing type non-stop feeder, which is suitable for small size material cutting.

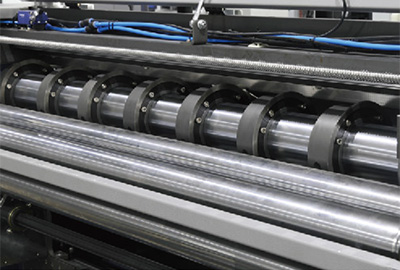

High Quality Round Knife

Using alloy material round knife, durable,effectively reduce wear and improve cutting efficiency.

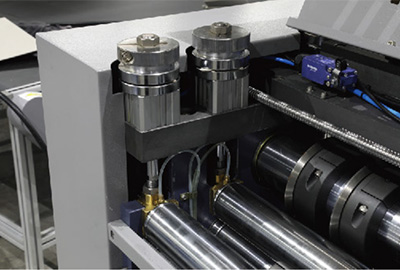

Pneumatic Pressure Control Device

Pneumatic pressure adjustment, conve-nient and fast, reduce the technical personnel on the machine operation requirements.

Ball Screw With Servo Motor

The feeder adopts servo motor and ball screw, which improves the accuracy and makes the adjustment easier.

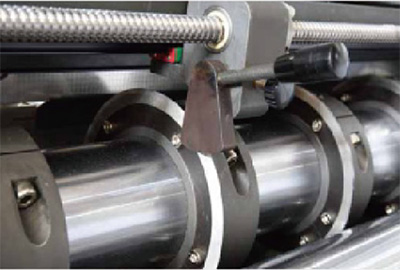

Numerical knife adjustment

Digital setting of knife spacing. according to the setting, the gauge automatically moves to the designated position, easy to adjust, no need to measure.

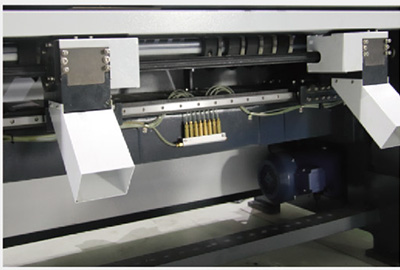

Waste Removal Device

After the board is cut, the left and right wastes are automatically send to the crusher, and then conveyor belt send them out of machine, which is simple and practical, and reduces the labor intensity
