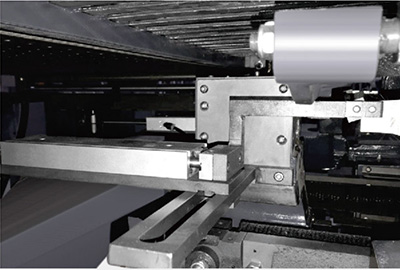

TürkçeLong Ear Folding Device(Optional)
It can fold the ear size 1/2 Width and 1 Width of box.[Width≤100mm].

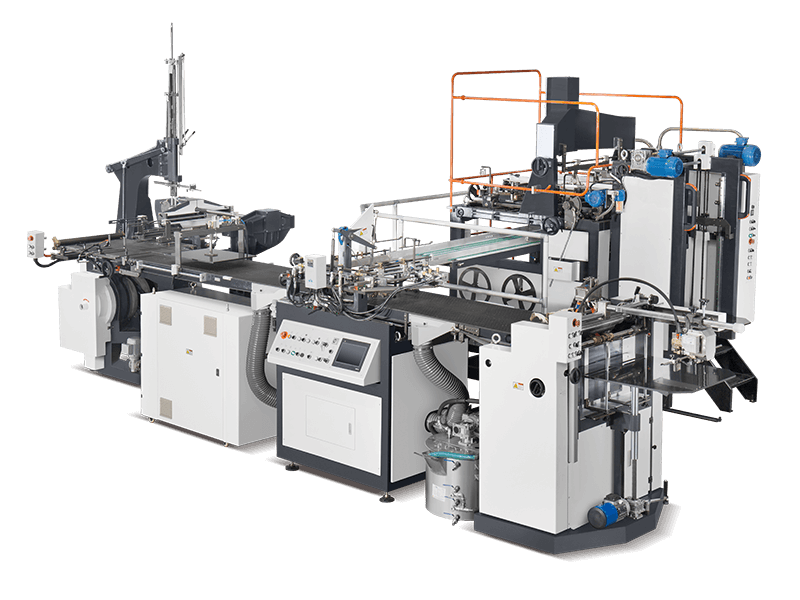

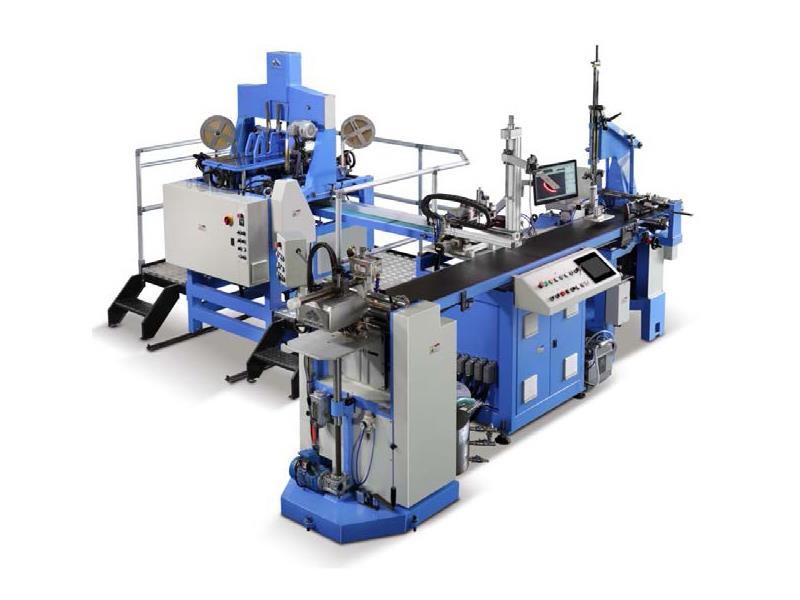

Automatic Rigid Box marker is a good equipment for making high-grade boxes which is featured by fne design, reliable performances and international advanced technologies. It employs PLC, photoelectric detector system, hydraulic rectifying system, HMI to automatically finish feeding and gluing paper, conveying cardboard, forming and gluing four angles of cardboard, positioning and forming box in one time, instead of manual production, greatly improving the production effciency and quality of rigid boxes.
<35
boxs / min
It is applicable to make high-grade boxes for cell phones shoes ,cosmetics, shirts, moon cakes, liquors, cigarettes, teas, etc.
1. Full automatic face paper feeder.
2. Hot melt adhesive automatic circulation, mixing and gluing system (glue viscosity system can be selected).

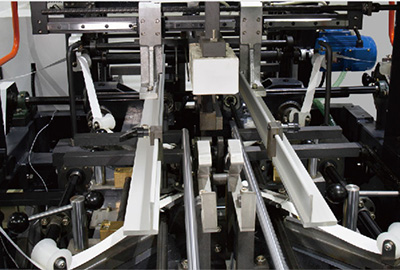

3. The hot melt adhesive tape automatic conveying and slitting device can complete the corner pasting of the cardboard inner box at one time.
4. A vacuum suction fan is arranged below the conveyor belt to control the glued paper without relative deviation.
5. The hydraulic and pneumatic deviation correction device is adopted for the inner box of coated paper and paperboard, which can accurately position and fit with a ftting error of +0 3mm.
6. The carton forming section automatically collects the carton to the forming section according to the carton conveying condition above the conveyor belt.
7. The continuous operation of the carton forming section includes box feeding, edging, ear folding and paper edge folding.
8. The whole machine adopts PLC control, photoelectric tracking system and touch screen human-machine interface to realize the automatic production process of one time carton forming.
9. Automatic fault diagnosis alarm function.
| Model | RB6040A |
| Box Size (WxL) | Min.50×100mm Max.400×600mm |
| Paper Size (AxB) | Min.95×180mm Max.610×850mm |
| Box Height (H) | 12-150mm |
| Turn ln Depth (R) | 10-60mm |
| Cardboard Thickness (T) | 0.8-3mm |
| Paper Thickness | 100-400g/m² |
| Precision | ±0.3mm |
| Speed | <35pcs/min |
| Motor Power | 10kw/380v 3phase |
| Electric Heating Power | 12kw |
| Air Supply | 10L/min 0.6Mpa |
| Machine Dimension | L6600×W4100×H3550 mm |
| Machine Weight | 6800kg |
| Paper Wrap Type | 1/2/3 |
1.The Max.and Min. sizes of the boxes are subjected to the sizes and quality of the paper.
2.The speed of the machine depends on the sizes of the boxes.
3.We don't provide air compressor.
W+2H-4T
A(Min)
L+2H-4T≤D(Max)
B(Min)≤L+2H+2T+2R
It can fold the ear size 1/2 Width and 1 Width of box.[Width≤100mm].

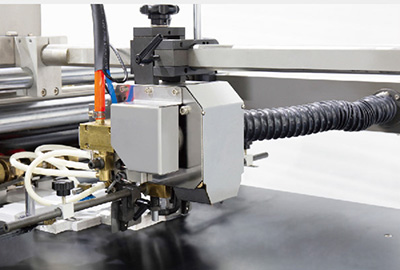

Adopt on-line mechanical type paper feeder with simple structure and steady running.
Friendly-designed all icons control panel, easy to understand and operate.

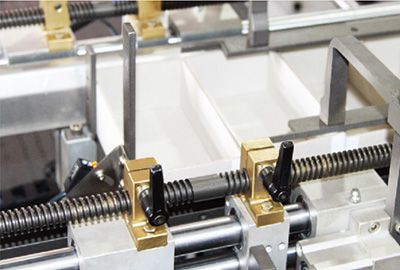

Adopt imported hydraulic rectifying system and photoelectric device for positioning, which efficiently improves the precision.
Adopt environment-friendly tape to paste the box corers, which can paste four corners in one process with neat appearance.

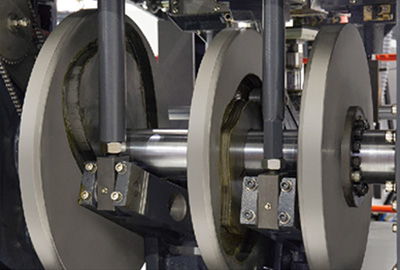

Adopt durable alloy steel disc cams.
We have the latest advanced processingequipment and international lean productionprocess, and strive to be the industry leader.
