TürkçeCamera Positioning System
China's first three camera positioning system and independent box positioning system, combined with the robot to take the box, is currently advanced and high-precision positioning technology.

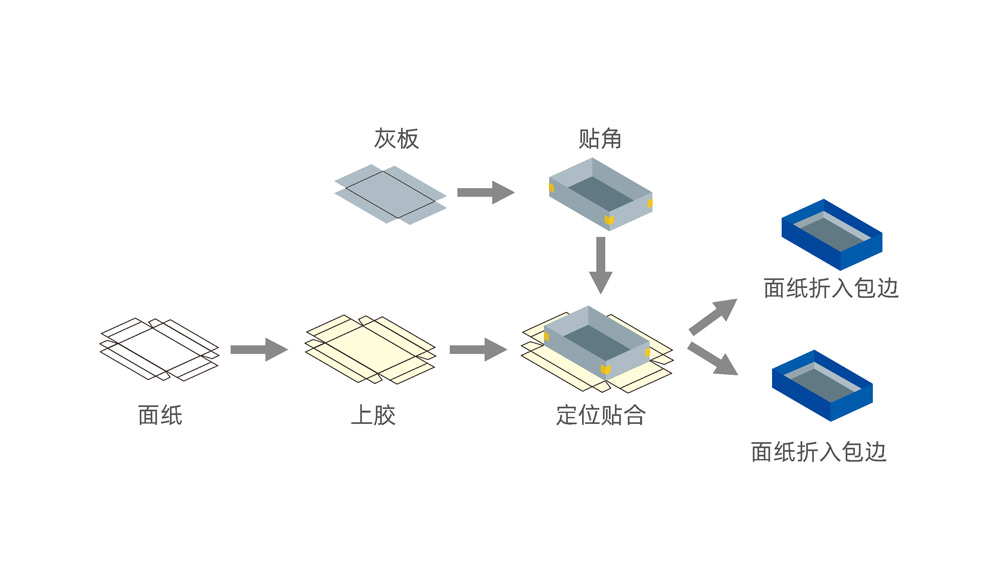

Automatic Rigid Box marker is a good equipment for making high-grade boxes which is featured by fne design, reliable . performances and international advanced technologies. It employs PLC, photoelectric detector system, hydraulic rectifying system, HMI to automatically finish feeding and gluing paper, conveying cardboard, forming and gluing four angles of cardboard, positioning and forming box in one time, instead of manual production, greatly improving the production effciency and quality of rigid boxes.
＜50/≤30
boxs / min
It is applicable to make high-grade boxes for cell phones, shoes, cosmetics, shirts, moon cakes, liquors, cigarettes, teas, etc.
1) Full automatic feeder of paper.
2) Hot melt adhesive automatic circulation, mixing and gluing system (glue viscosity system can be selected).
3) The hot melt adhesive tape automatic conveying and sitting device can complete the corner pasting of the cardboard inner box at one time.
4) The original cardboard stacking and conveying device can realize non-stop conveying and ensure the high-speed operation of the machine.
5) A vacuum suction fan is arranged below the conveyor belt to control the glued paper without relative deviation.
6) A single carton can be positioned independently, improving the speed and accuracy of positioning the carton and the face paper.
7) The adhesive coated paper and cardboard inner box are positioned by Yamaha YAMAHA robot image, which can accurately position and fit with an accuracy of ±0.1mm.
8) The carton forming section automatically collects the carton to the forming section according to the carton conveying condition above the conveyor belt.
9) The continuous operation of the carton forming section includes box feeding,edging, ear folding and paper edge folding.
10) Servo controlled carton forming pressure can effectively eliminate bubbles and improve product quality.
11) The whole machine adopts PLC control and touch screen human-machine interface to realize the automatic production process of one-time carton forming.
12) Automatic fault diagnosis alarm function.
13) The new molding machine can store and retrieve parameter settings ,automatically complete machine adjustment, and realize rapid mold change.
14) I/O field bus 1/0 module, which ensures the relabilit of data transmission and acilitates fault query and maintenance .
15) The control system can be maintained and upgraded in time through remote monitoring.
1.The Max.and Min. sizes of the boxes are subjected to the sizes and quality of the paper.
2.The speed of the machine depends on the sizes of the boxes.
3.We don't provide air compressor.

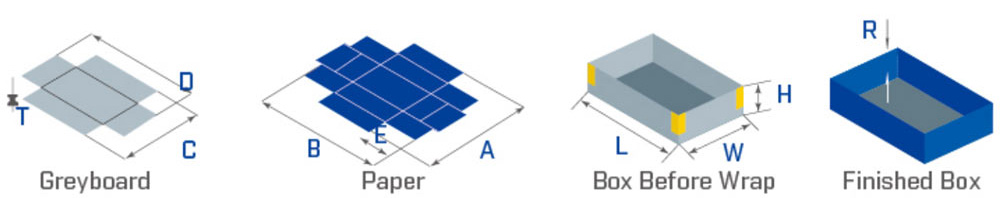

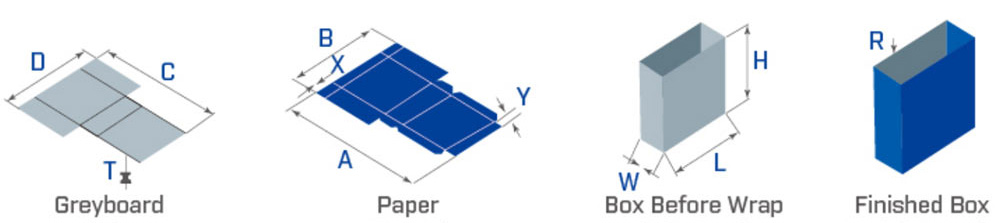

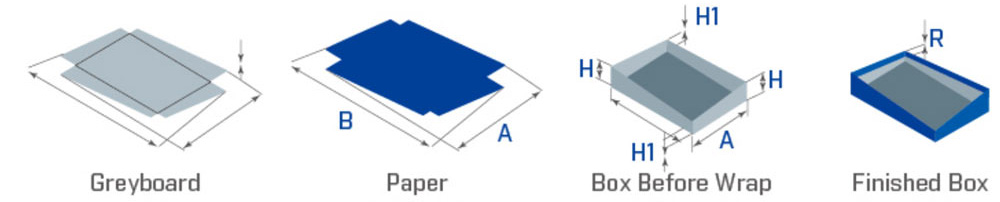

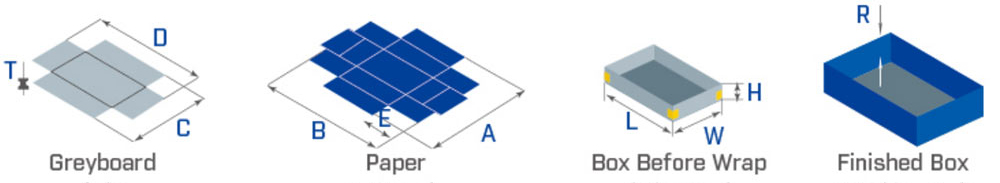

W+2H-4T
A(Min)
L+2H-4T≤D(Max)
B(Min)≤L+2H+2T+2R

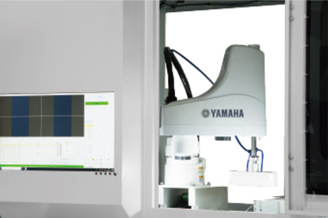

China's first three camera positioning system and independent box positioning system, combined with the robot to take the box, is currently advanced and high-precision positioning technology.

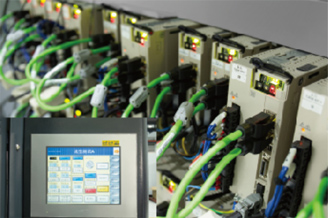

The newly designed servo and pneumatic control structure completes the box forming and wrapping, and realizes rapid digital adjustment.
The newy dsgseo sococolo paper ee aops me rear sucton type to feed paer, fectivey pevening double sees of paper, and stable operation.

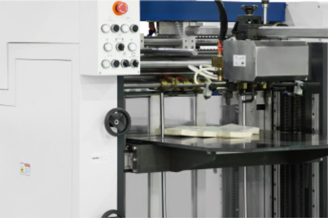

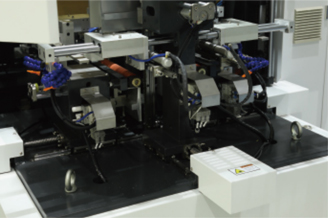

The newly designed servo-controlled paper feeder adopts the rear suction type to feed paper, effectively preventing double sheets of paper, and stable operation
The non-stop stacking conversion device can realize non-stop transportation and ensure the high-speed operation of the machine.
The regular and quantitative centralied oil supply system can flly guarantee the lubrication of the main parts and efectively ensure the stable operation ofthe machine.
We have the latest advanced processingequipment and international lean productionprocess, and strive to be the industry leader.
