CB450A

Automatic Case Maker

Our company has optimized and upgraded the semi-automatic wine packaging production line to meet current market demand. We have installed a Yamaha robotic arm with image positioning device imported from Japan, which can accurately position and improve precision. This production line features fast production speed, low labor requirements, exquisite finished products, and high positioning accuracy.

Maximum speed of

35

boxs / min
Sample

It can be widely used in the production of high-end book covers, wine packaging shells, cigarette packaging shells, notebooks, folders, calendars, and other products.

Benefits

lt can automatically feed and glue paper, delivery and position cardboard, and fold four sides in one process; there are features of accurate and quick positioning, and beautiful finished products etc. It is used to make hardcovers, notebook covers, desk calendars, hanging calendars, book-type boxes, files and irregular covers etc.





Technical Parameters
Model CB450A
Face paper size MIN: 100×230mm  MAX: 480×830mm
Top paper thickness 100-300g/m²
Cardboard thickness 1-4mm
Finished product size MIN: 100×200mm  MAX: 450×800mm
Minimum size of center bar 7mm
Folded edge size 10-18mm
Maximum number of slices 6pieces
Positioning accuracy ±0.1mm
Production speed 35sheets/min
Motor power 12kw/380v 3phase
Electrothermal power 12kw
Air source requirements 30L/min 0.6Mpa
Machine weight 3200kg
Overall size L9450×W2200×H2000mm



Main components:

PLC system: Taiwan Delta

Electrical components. Schneider Electric from France

Pneumatic components: SMC from Japan

Conveyor belt: HABASIT from Switzerland

Servo motor: Taiwan Delta

Transmission system: Taiwan Yintai

Synchronous belt: GATES from the United States

Bearings: imported NSK bearings

Robotic arm: Yamaha from Japan





Remark



1.The max and mini sizes of the covers are subjected to the size and the quality of the paper.

2.The speed of the machine depends on the sizes of the covers.

3.We don't provide air compressor.



System Features

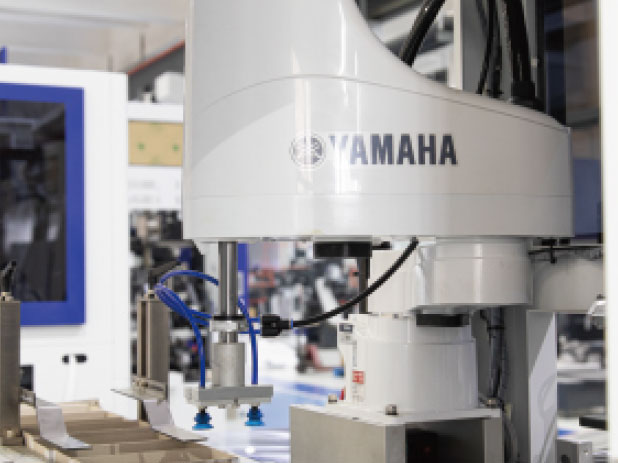

Yamaha Manlpulator

Yamaha Manlpulator

Yamaha manipulator, dual-camera high-definition image positioning accuracy of 0.1mm.

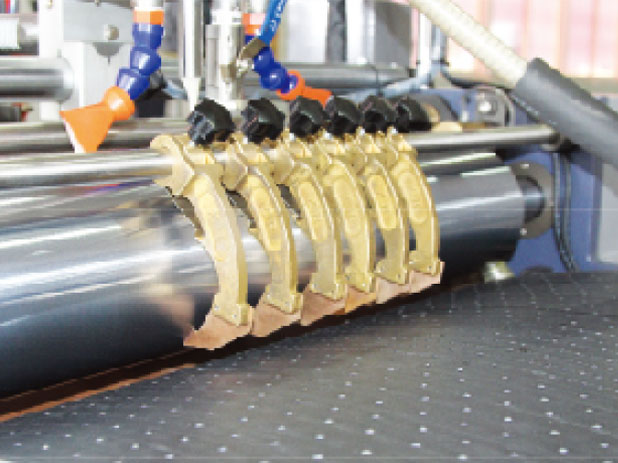

Stainless Steel Chrome-plated Roller

Stainless Steel Chrome-plated Roller

The top rubber roller is all made of finely ground stainless steel chrome plated roller, which is more durable by using the line contact scraper.

Mechanlcal Cam Control ls Adopted For Four-slde Binding

Mechanlcal Cam Control ls Adopted For Four-slde Binding

The four-sided binding is controlled by mechanical cam, which is durable.
